10 Series Flexy Flat Vacuum Suction Cups | High Durability

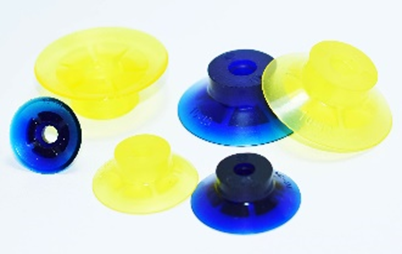

Flexy 10 Series Vacuum Cups (Flexy Flat Cups) are premium-grade vacuum suction cups specially designed for flat surfaces. Manufactured from high-quality Polyurethane (PU), the 10 Series offers exceptional durability — lasting 3 to 4 times longer than conventional rubber suction cups — significantly reducing machine downtime and replacement costs.
Ideal for high-speed automation lines handling flat materials such as cardboard, plastic sheets, metal sheets, and packaging.
Key Features of Flexy 10 Series Vacuum Cups
- Wide Size Range: Available from Ø20mm to Ø150mm
- Superior Durability: 3–4x longer lifespan compared to standard rubber cups
- Optimized Design: Excellent gripping performance on flat surfaces with reinforced lip and internal cleats for stronger hold
- High Elasticity & Abrasion Resistance: Outstanding tensile strength and wear resistance
- Perfect for: Packaging, carton handling, sheet metal, plastic sheets, printing, and material handling automation
Technical Specifications:
- Material: Polyurethane (PU)
- Color: Dark Blue / Blue, Yellow
- Temperature Range: 5°C – 50°C
- Hardness: Shore A40° / A60° (A40° standard for Ø60mm and Ø150mm)
Order Information
|
Product Code |
Size |
Hardness |
Color |
Fitting Options |
Qty / Box |
|
10020-01 |
Ø20mm |
A40 / A60 |
T - Yellow |
G1/8” Male |
50 |
|
10020-02 |
Ø20mm |
A40 / A60 |
T - Blue |
G1/8” Male |
- |
|
10030-01 |
Ø30mm |
A40 / A60 |
T - Yellow |
G1/8” Male |
30 |
|
10030-02 |
Ø30mm |
A40 / A60 |
T - Blue |
G1/8” Male |
- |
|
10040-01 |
Ø40mm |
A40 / A60 |
T - Yellow |
G1/4” Male |
20 |
|
10040-02 |
Ø40mm |
A40 / A60 |
T - Blue |
G1/4” Male |
- |
|
10060-01 |
Ø60mm |
A40 |
T - Yellow |
G3/8” Male |
16 |
|
10060-02 |
Ø60mm |
A40 |
T - Blue |
G3/8” Male |
- |
|
10080-01 / 02 |
Ø80mm |
A40 / A60 |
Yellow / Blue |
G3/8” & G1/4” Male & Female |
16 |
|
10100-01 / 02 |
Ø100mm |
A40 / A60 |
Yellow / Blue |
G3/8” & G1/4” Male & Female |
16 |
|
10150-01 / 02 |
Ø150mm |
A40 / A60 |
Yellow / Blue |
G3/8” & G1/4” Male & Female |
16 |
Note: Sizes Ø20mm – Ø40mm do not include molded inserts. Larger sizes (Ø60mm and above) come with molded inserts. Please contact us for complete part numbers and fitting options.
Why Choose Flexy 10 Series Vacuum Cups?
- Dramatically lower replacement costs with 3–4x longer service life
- Excellent performance on flat surfaces — ideal for packaging and sheet material handling
- High reliability and easy installation with standard fittings
- Proven solution trusted in demanding industrial environments
Main Applications: Carton packaging, plastic sheet handling, metal sheet processing, printing industry, and robotic automation systems.
Looking for high-performance flat vacuum suction cups? Contact AVA today for expert advice and the best pricing on Flexy 10 Series Vacuum Cups.
