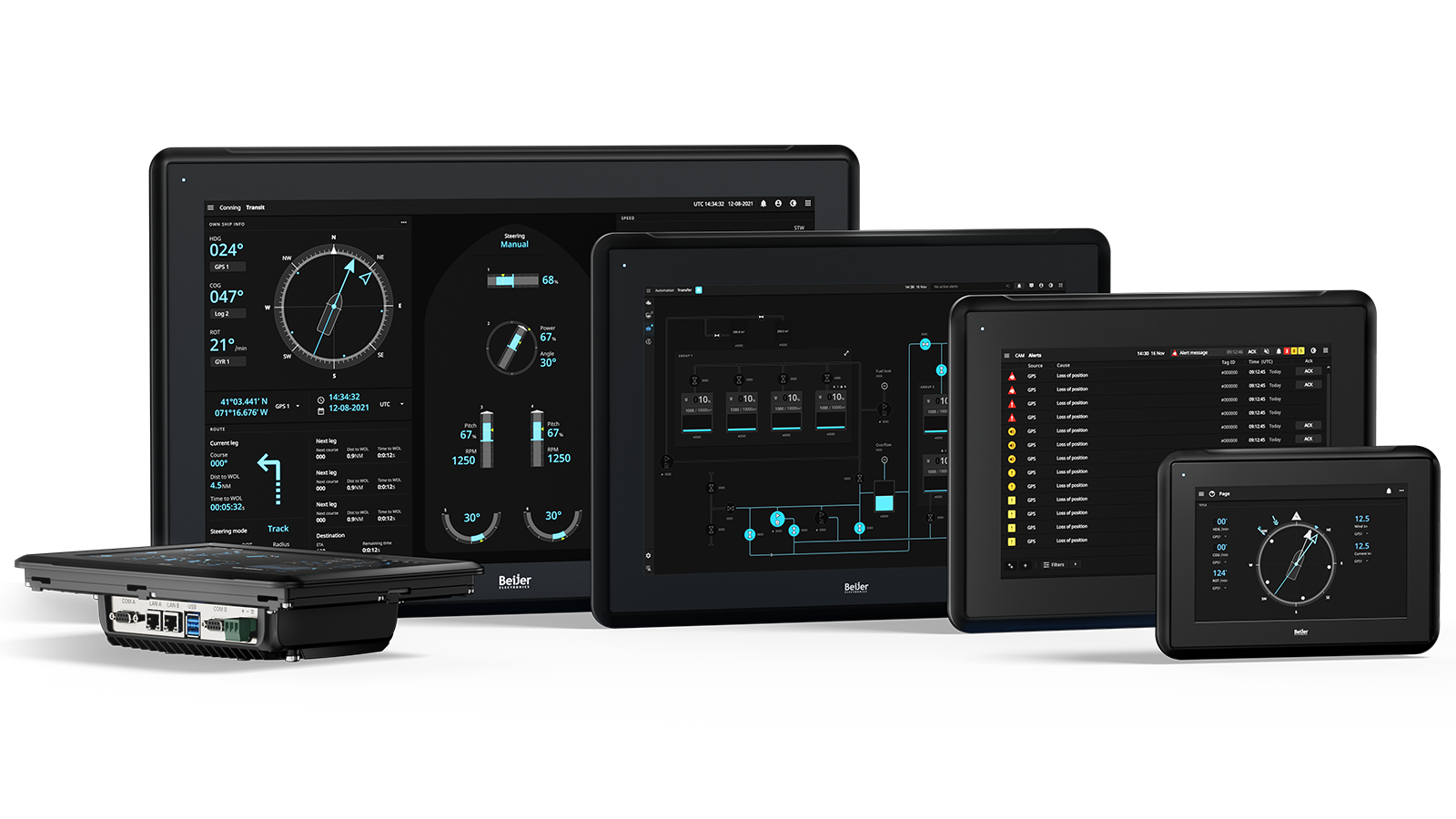

Beijer Electronics X3 marine

The Beijer Electronics X3 marine is a series of human-machine interface (HMI) panels developed for monitoring and control applications in the maritime sector. It combines industrial-oriented hardware, a flexible software platform, and security features to support operational requirements at sea.

The X3 marine supports applications based on the iX platform, enabling customized functionality through C# scripting and additional capabilities through NuGet packages. Web panel options are also available, providing flexibility when selecting the appropriate technology for a system.

With marine certifications, hardware designed for reliable operation, and dimming capabilities for day and night use, the X3 marine is suited to maritime applications that require dependable operator interfaces.

Key features of the X3 marine

1. Flexible HMI platform

The X3 marine supports iX-based application development, allowing users to configure interfaces and functions according to specific system requirements.

Key capabilities include:

• Custom functionality through C# scripting.

• Extended application capabilities using NuGet packages.

• Support for a modern web browser.

• Web panel options for different deployment needs.

These features give system integrators greater flexibility when developing operator interfaces for marine equipment and control systems.

2. Security for industrial control systems

The X3 marine is designed to comply with IEC 62443-4-2, a cybersecurity standard addressing components used in industrial automation and control systems.

Security-related capabilities include:

• Encrypted communication.

• Controlled communication ports.

• Secure data transfer.

• User management through the OS3 operating system.

• DNV SP1 included natively in the iX environment, as specified by the manufacturer.

In addition to software security features, the series' marine certifications support its use in applicable maritime installations.

3. Hardware designed for reliable operation

The X3 marine combines high-quality hardware, powerful CPUs, large memory capacity, carefully selected components, and thorough testing.

This design approach supports reliable performance in industrial and maritime environments, helping maintain the availability of monitoring and control systems.

4. Day and night dimming

The X3 marine features marine dimming capabilities for applications such as engine rooms and bridges.

Operators can adjust screen brightness to suit different lighting conditions, supporting comfortable viewing during daytime and nighttime operations.

5. Two touchscreen technologies

The X3 marine series offers both resistive-touch and projected capacitive (PCAP) touchscreen models to address different operational requirements.

Resistive-touch HMI

Resistive-touch models are suitable for applications requiring operation with gloves or styluses and precise single-point input. They are an option to consider in marine environments exposed to moisture, salt spray, or changing operating conditions.

Capacitive-touch HMI (PCAP)

PCAP models provide an intuitive, multi-touch experience with gestures similar to those used on modern mobile devices. Their glass front offers high optical clarity, supporting applications where clear visibility is important in bright or reflective environments.

The appropriate touchscreen technology should be selected according to actual operating conditions, user interaction requirements, and system specifications.

6. Multiple display sizes

The X3 marine series offers 7-, 10-, 12-, 15-, and 21-inch display options. This range allows users to select a panel based on available installation space, visualization requirements, and application needs.

7. Simplified upgrades from X2

The X3 marine is designed to facilitate the transition from X2 panels through corresponding panel dimensions, cut-out sizes, connector configurations, and a guided software transition process.

This can reduce the modifications required when upgrading an existing HMI installation. Specific compatibility should be verified against the installed model and configuration.

8. OS3 operating system

OS3 provides an intuitive interface for device configuration and management, including system setup and hardware diagnostics. It also supports multi-app functionality and container technology, providing additional flexibility for software deployment.

Applications of the Beijer Electronics X3 marine

The X3 marine is designed for operator-interface and monitoring applications in the maritime sector, particularly where suitable marine certifications and adjustable display brightness are important.

Potential applications include:

• Operator interfaces on vessel bridges.

• Monitoring and control systems in engine rooms.

• HMIs for marine equipment.

• Onboard automation and control systems.

• iX-based applications requiring customized functionality and enhanced security.

Model selection should take into account the application's certification requirements, display size, touchscreen technology, and installation conditions.

------------------------------------------------------
