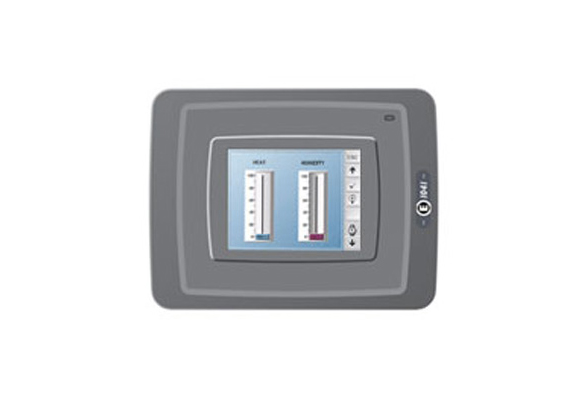

E1041
|
|
3.5'' graphic touch HMI 320 x 240 pixels TFT display 3.5" TFT-LCD touch screen Project storage 12 MB Operating temperature 0 to +50 °C Ethernet and serial Touch display |
Facts
General description
| Part number | 603221120 |
| Life cycle status | Limited |
| Warranty | 1 year |
Mechanical
| Mechanical size | 155.8 x 119 x 62.8 mm |
| Number of touches | 1 million finger touch operations |
| Touch type | Resistive type |
| Cut-out size | 139 x 105 mm |
| Weight | 0.6 kg |
| Housing material | Powder-coated aluminium, grey |
Power
| Input voltage | 20 - 30 V DC |
| Power consumption (max) | 3.6 W |
| Input fuse | Internal DC fuse, 2.0 AT |
Display
| Size diagonal | 3.5 inch |
| Resolution | 320 x 240 pixels |
| Backlight | CCFL with dimming |
| Backlight life time | 58,000 hrs |
| Backlight brightness | 350 cd/m2 |
| Display type | TFT CCFL |
Serial communication
| Number of serial ports | 1 Port 9pin DSUB/1 Port 25 pin DSUB |
| Serial port 1 | RS 232 (RTS/CTS) |
| Serial port 2 | RS422 (RTS)/RS485 |
Ethernet communication
| Number of Ethernet ports | 1 |
| Ethernet port 1 | 1x10/100 Base-T (shielded RJ45) |
