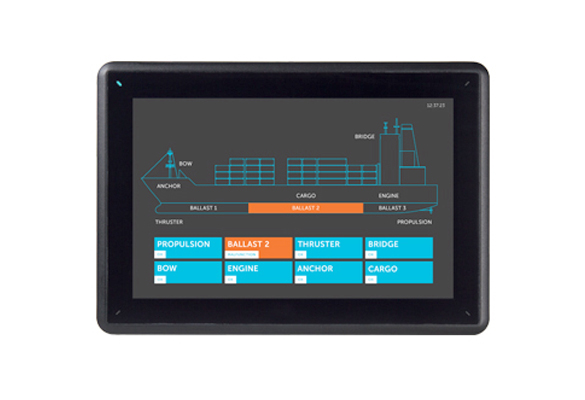

iX T15BM-CAN - iX TxXM operator panels for marine applications





15.4'' graphic touch marine HMI with iX runtime, CAN interface

 15.4" TFT-LCD touch screen

 1280 × 800 (16:10)

Facts

General description

Part number 640003401
Life cycle status Discontinued
Warranty 1 year

Mechanical

Mechanical size 410 x 286 x 83 mm
Touch type Resistive type
Weight 4.5 kg
Housing material Powder coated aluminum

Power

Input voltage +24 VDC (18 - 32 VDC)
Power consumption (max) 28 W
Input fuse Internal DC fuse, 3.15A slow

Display

Size diagonal 15.0 inch
Resolution 1280 X 800 pixels
Backlight LED backlight
Backlight life time 50,000 hrs
Backlight brightness 450 cd/m2
Backlight dimming Marine Optimized for bridge
Display type TFT LCD

Serial communication

Number of serial ports 2 Port 9pin DSUB

Ethernet communication

Number of Ethernet ports 2
Ethernet port 1 1x10/100 Base-T (shielded RJ45)
Ethernet port 2 1x10/100/1000 Base-T (shielded RJ45)

Environmental

Operating temperature -15 to 55 °C
Storage temperature -20 to + 70 °C
Shock 10G 11ms half sine
Vibration 0,7G RMS
Sealing front IP65
Sealing back IP20
Humidity <85 % non-condensed
