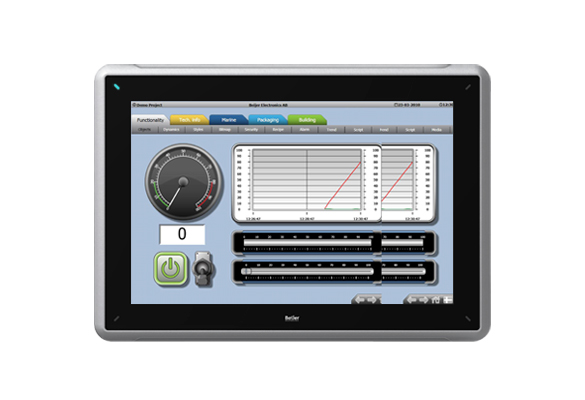

iX T15C - C23

15.4'' graphic touch HMI with iX runtime

 15.4" TFT-LCD touch screen

 1280 × 800 (16:10), 16mio. colors, LED backlight

 Intel® Core™ i7-2715QE (4x 2.1 GHz)

 Main memory 4 GB DDR3 (with ECC support)

 Application memory 180GB 2.5“ SSD

 Operating temperature 0 to +50 °C

 CE and UL508 approvals



Facts

General description

Part number 100-0586
Life cycle status EOL
Warranty 1 year

Mechanical

Mechanical size 410 x 286 x 83 mm
Touch type Resistive type
Weight 5.4 kg
Housing material Powder coated aluminum

Power

Input voltage +24 VDC (18 - 32 VDC)
Power consumption (max) 120 W
Input fuse Internal DC fuse, 10A slow

Display

Size diagonal 15.4 inch
Resolution 1280 X 800 pixels
Backlight LED backlight
Backlight life time 50,000 hrs
Backlight brightness 450 cd/m2
Backlight dimming Industrial
Display type TFT LCD

Serial communication

Number of serial ports 2 Port combined 9pin DSUB with dual pin out
Serial port 1 RS 232 (RTS/CTS)
Serial port 2 RS 485
Serial port 3 RS 232
Serial port 4 RS 485

Ethernet communication

Number of Ethernet ports 2
Ethernet port 1 1x10/100/1000 Base-T (shielded RJ45)
Ethernet port 2 1x10/100/1000 Base-T (shielded RJ45)

Environmental

Operating temperature 0 to + 50 °C
Storage temperature -20 to + 70 °C
Shock 10G 11ms half sine
Vibration 0,7G RMS
Sealing front IP65
Sealing back IP20
Humidity <85 % non-condensed
