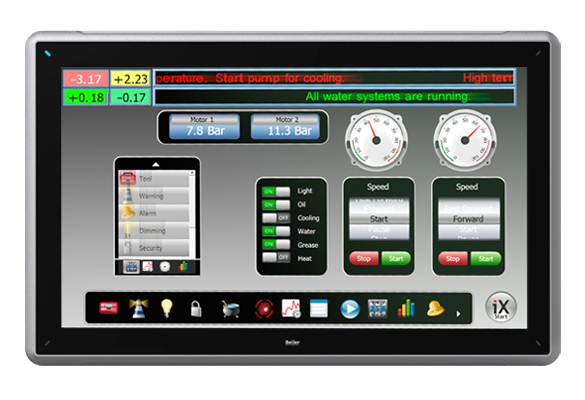

iX T21C - C24
|
|
21.5'' graphic touch HMI with iX runtime21.5" TFT-LCD touch screen 1920 × 1080 (16:9), 16mio. colors, LED backlight Intel® Celeron® B810E (2× 1.6 GHz) Main memory 2 GB DDR3 (with ECC support) Application memory 120GB 2.5“ SSD Operating temperature 0 to +50 °C CE and UL508 approvals |
Facts
General description
| Part number | 100-0587 |
| Life cycle status | EOL |
| Warranty | 1 year |
Mechanical
| Mechanical size | 556 x 347 x 87 mm |
| Touch type | Resistive type |
| Weight | 8.1 kg |
| Housing material | Powder coated aluminum |
Power
| Input voltage | +24 VDC (18 - 32 VDC) |
| Power consumption (max) | 125 W |
| Input fuse | Internal DC fuse, 10A slow |
Display
| Size diagonal | 21.5 inch |
| Resolution | 1920 X 1080 pixels |
| Backlight | LED backlight |
| Backlight life time | 50,000 hrs |
| Backlight brightness | 250 cd/m2 |
| Backlight dimming | Industrial |
| Display type | TFT LCD |
Serial communication
| Number of serial ports | 2 Port combined 9pin DSUB with dual pin out |
| Serial port 1 | RS 232 (RTS/CTS) |
| Serial port 2 | RS 485 |
| Serial port 3 | RS 232 |
| Serial port 4 | RS 485 |
Ethernet communication
| Number of Ethernet ports | 2 |
| Ethernet port 1 | 1x10/100/1000 Base-T (shielded RJ45) |
| Ethernet port 2 | 1x10/100/1000 Base-T (shielded RJ45) |
Environmental
| Operating temperature | 0 to + 50 °C |
| Storage temperature | -20 to + 70 °C |
| Shock | 10G 11ms half sine |
| Vibration | 0,7G RMS |
| Sealing front | IP65 |
| Sealing back | IP20 |
| Humidity | <85 % non-condensed |
