GENUINE PRODUCT

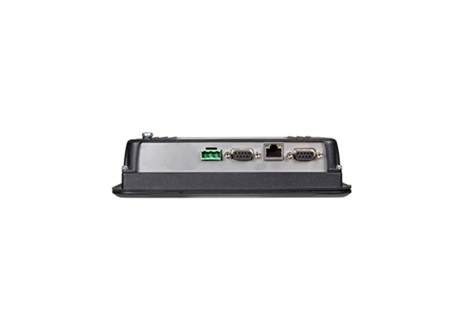

iX T7AM
SKU: AVA-03A4F9A0
Category: Products
PRICE:
REQUEST A QUOTE
Manufacturer warranty
Overview
iX T7AM - AVA Air Vacuum Automation.
TECHNICAL SUPPORT & QUOTE
Talk to the AVA engineering team for the best offer.
TECHNICAL DETAILS & SPECIFICATIONS
iX T7AM - iX TxXM operator panels for marine applications
|
|
7.0'' graphic touch marine HMI with iX runtime7.0" TFT-LCD touch screen 800 × 480 (16:9) |
Facts
General description
| Part number | 630002502 |
| Life cycle status | Discontinued |
| Warranty | 1 year |
Certifications
| General | CE, FCC, KCC |
| Marine | DNV, KR, GL, LR, ABS, RS, BV |
| Safety | UL508 |
Mechanical
| Mechanical size | 204 x 143 x 52.2 mm |
| Touch type | Resistive type |
| Weight | 0.9 kg |
| Housing material | Powder coated aluminum |
Power
| Input voltage | 24 VDC (18 - 32VDC) |
| Power consumption (max) | 6.0 W |
Display
| Size diagonal | 7.0 inch |
| Resolution | 800 x 480 pixels |
| Backlight | LED backlight |
| Backlight life time | 50,000 hrs |
| Backlight brightness | 500 cd/m2 |
| Backlight dimming | Marine Optimized for bridge |
| Display type | TFT LCD |
Serial communication
| Number of serial ports | 2 Port combined 9pin DSUB with dual pin out |
| Serial port 1 | RS 232 (RTS/CTS) |
| Serial port 2 | RS422/485 |
| Serial port 3 | RS 232 |
| Serial port 4 | RS422 (RTS)/RS485 |
Ethernet communication
| Number of Ethernet ports | 1 |
| Ethernet port 1 | 1x10/100 Base-T (shielded RJ45) |
Environmental
| Operating temperature | -10 to + 60 °C |
| Storage temperature | -20 to + 70 °C |
| Shock | 10G 11ms half sine |
| Vibration | 0,7G RMS |
| Sealing front | IP65 |
| Sealing back | IP20 |
| Humidity | <85 % non-condensed |
