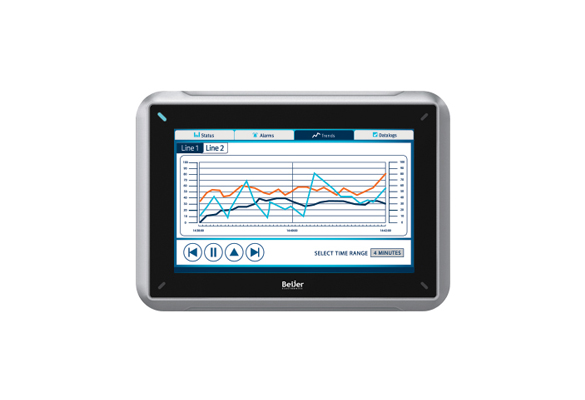

iX T7BR-HB-CAN matte - iX TxXR operator panels for rugged applications
|
|
7.0" graphic touch rugged HMI with iX runtime, CAN, high brigtness display7.0" TFT-LCD touch screen 800 × 480 (16:9) |
Facts
General description
| Part number | 640007601 |
| Life cycle status | Limited |
| Warranty | 2 year |
Mechanical
| Mechanical size | 204 × 143 × 73 mm |
| Touch type | Resistive type |
| Weight | 2.5 kg |
| Housing material | Powder coated aluminum |
Power
| Input voltage | 12 or 24 VDC (10-32 VDC) |
| Power consumption (max) | 14 W |
| Input fuse | Internal DC fuse, 3.15A slow |
Display
| Size diagonal | 7.0 inch |
| Resolution | 800 x 480 pixels |
| Backlight | LED backlight |
| Backlight life time | 50,000 hrs |
| Backlight brightness | 1000 cd/m2 |
| Backlight dimming | Industrial |
| Display type | TFT LCD |
Serial communication
| Number of serial ports | 2 Port 9pin DSUB |
Ethernet communication
| Number of Ethernet ports | 2 |
| Ethernet port 1 | 1x10/100 Base-T (shielded RJ45) |
| Ethernet port 2 | 1x10/100/1000 Base-T (shielded RJ45) |
Environmental
| Operating temperature | -30 to 70 °C |
| Storage temperature | -40 to + 85 °C |
| Shock | 40G half sine |
| Vibration | 4G RMS |
| Sealing front | IP66 |
| Sealing back | IP20 |
| Humidity | <85 % non-condensed |
