Namwon Turbo QT Series Blower

Namwon Turbo QT Series Blower
Views: 894
  • Information details
  • Comments




The QT Series uses the same components and technology as the TB turbo blowers. Namwon Turbo One has put a lot of effort into the development and research of existing turbo blowers. The QT series is made with excellent quality and is cheaper than the existing series.

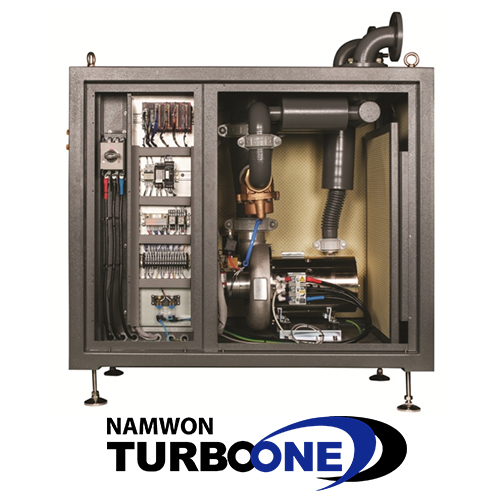

namwon turbo qt



Product Informations



Motor


High Speed Permanent-magnet Synchronous Motor

Bearing

Air Bearing

Speed Control

VFD Inverter

Input Voltage

380 - 480V, 50 - 60Hz, 3Ph

Cooling System

Air Cooling

Noise Level

Less than 80dB

Inlet Type

Standard / Flange

Number of Filters

1 (front), 2 (rear); 3 total



Model of QT Series Blower



Model

Flow rate

Pressure

Shaft Power

Discharge

Dimensions (mm)

m3/min

(bar)

(HP)

(A KS 10K)

W

L

H

QT 10

3~10

0.3~0.8

10

80

700

1200

1120

QT 15

3~11

0.3~0.8

15

QT 20

6~19

0.3~0.8

20

150

QT 30

7~25

0.3~0.8

30

QT 40

11~36

0.3~0.8

40

QT 50

11~41

0.3~1.0

50

Operational Condition : 20℃, 1.2kg/m3, 65% RH / Margin of Error ±5%



Advantages of Namwon Turbo QT blower series


Ease of maintenance and low cost: Due to the use of silver bearings, there is no need to use lubricants or to replace the bearings. Only the filter needs to be replaced for maintenance.

Ease of use and control:



  • Display engine speed, pressure and temperature through touch screen display.
  • Easy to enter and control the system by touch screen display;
  • Number of different control modes such as flow rate, pressure, motor speed, constant current and constant power.


Energy saving: Due to the high efficiency design and motor in the compression motor. We are proud to say that the overall efficiency is greater than 65%.

(Reference efficiency is 70% at 200-0.7bar)

Low noise and no vibration: The noise level is less than 80dB, because the bearing is in contact with any surface. Centrifugal blowers will simultaneously provide suction and discharge. Therefore, the overall vibration of the blower is almost zero.

Fresh Air Lubricant: Since no lubricant is required in the bearings, the air supplied is clean and free of contaminants.

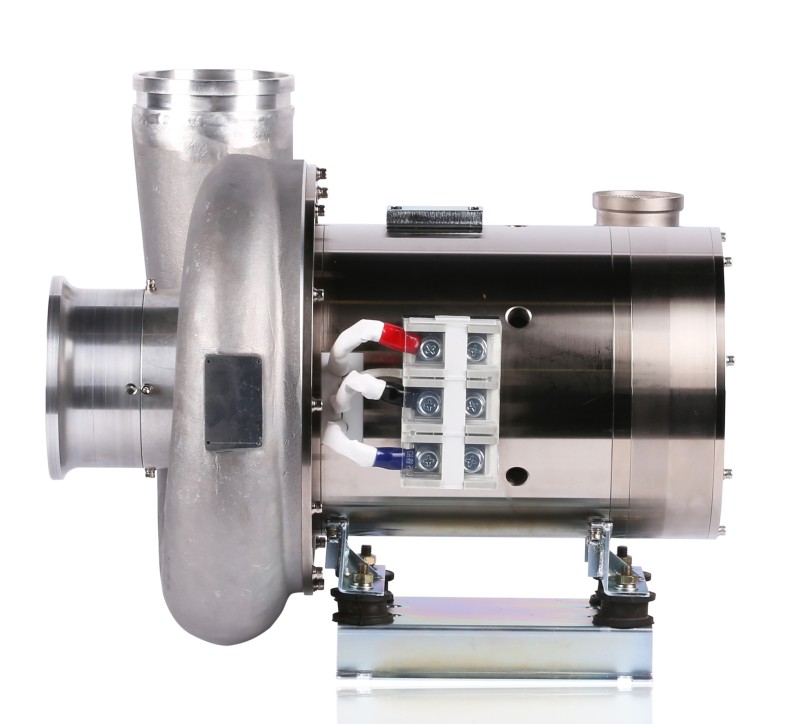

động cơ namwon turbo

Namwon Turbo Blower supplier


AVA is the distributor of Namwon Turboone's blower product . With a many years of experienced technicians. We are confident to provide the best service to our customers.

In addition, AVA also provides other services such as repairing air blowers, providing spare parts and other equipment.





Namwon Turbo QT Series Blower at AVA company in Vietnam
