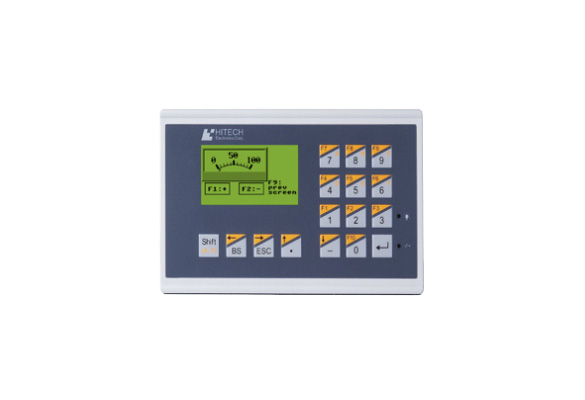

PWS6310S-S

Facts

General description

Part number 300-53103
Life cycle status Limited
Warranty 1 year

Certifications

General CE, FCC, UL

Mechanical

Mechanical size 173.0 x 105.5 x 51.8 mm
Number of touches 1million finger touch operations
Touch type Resistive
Cut-out size 160.8 x 93.3 mm
Weight 0.69 kg
Housing material Plastic, Gray

Power

Input voltage 24V DC ± 15%
Power consumption (max) 24VDC, 8W
Input fuse Internal DC fuse

Display

Size diagonal 3" diagonal
Resolution 160x80 pixels
Backlight LED Backlight
Backlight life time 50000 hours
Backlight brightness 35 cd/m2
Backlight dimming None
Display type Mono STN LCD

Serial communication

Number of serial ports 1 Port 9pin DSUB
Serial port 2 RS 232/RS422/Rs485

Environmental

Operating temperature -10°C to +60°C
Storage temperature 0°C to +50°C
Shock 10 G, 11 ms 3 times in each direction of X-, Y- and Zaxes
Vibration 0.5 mm displacement, 10-55 Hz, 2 hours per X-, Yand Z-axis directions
Sealing front IP65
Humidity 20 - 90% RH non-condensed
