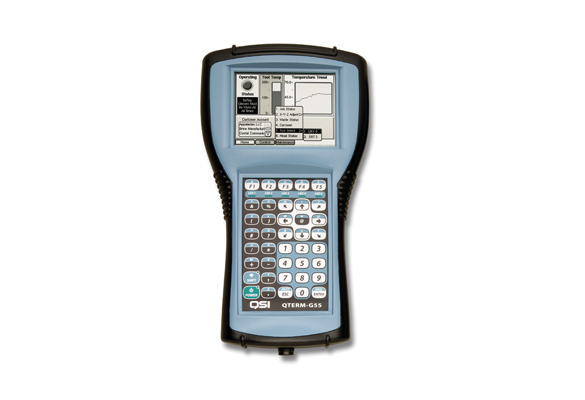

QTERM-G55: Handheld HMI



The QTERM-G55 is a rugged, hand-held human machine interface terminal with a 3.8" (96 mm) ransflective grayscale LCD display and Qlarity object-based programming language for application design.

- 320 x 240 pixel QVGA, 3.8” (96 mm) diagonal, LED lighted, transflective FSTN grayscale LCD display

- Handheld

- -20 to 60 °C operating temperature

- 24-key or 40-key tactile keyboard

- NEMA-4x/12 sealing, IP65

- 5 VDC or 8 to 32 VDC

- Qlarity-based object-based programming language, Qlarity Foundry Windows design environment

Facts

General description

Part number QTERM-G55/xxxx
Life cycle status Discontinued
Warranty 1 year

Certifications

General FCC, CE

Mechanical

Mechanical size 129 x 234 x 43 mm
Weight 0.52 kg
Housing material Polymer

Power

Input voltage 5 VDC or 8 to 32 VDC
Power consumption (max) 210 mA @ 12 VDC

System

CPU ARM720T
RAM 16 MB
FLASH 2 MB

Software

Operating system Windows CE

Display

Size diagonal 3.8" (96 mm)
Resolution 320 x 240
Backlight QVGA, transflective FSTN grayscale LCD
Backlight dimming Software-controllable

Ethernet communication

Number of Ethernet ports 1
Ethernet port 1 1x10/100 Base-T (shielded RJ45)

Environmental

Operating temperature -20 to 60 °C
Storage temperature -40 to 85 °C
Shock 20 g, 6 ms, any axis
Vibration 4 g 5-2000 Hz
Sealing front NEMA-4, NEMA-4x (on certain models); IP65
Humidity 0 to 95%, non-condensing
