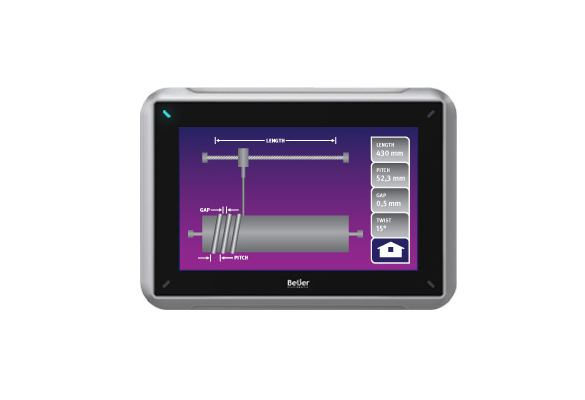

iX T7B-SM - iX TxX operator panels with soft motion
|
|
7.0" graphic touch HMI with iX runtime and CODESYS soft motion7.0" TFT-LCD touch screen 800 × 480 (16:9) |
Facts
General description
| Part number | 640002101 |
| Life cycle status | EOL |
| Warranty | 1 year |
Mechanical
| Mechanical size | 204 x 143 x 52.2 mm |
| Touch type | Resistive type |
| Weight | 0.9 kg |
| Housing material | Powder coated aluminum |
Power
| Input voltage | +24 VDC (18 - 32 VDC) |
| Power consumption (max) | 14 W |
| Input fuse | Internal DC fuse, 3.15A slow |
Display
| Size diagonal | 7.0 inch |
| Resolution | 800 x 480 pixels |
| Backlight | LED backlight |
| Backlight life time | 50,000 hrs |
| Backlight brightness | 500 cd/m2 |
| Backlight dimming | Industrial |
| Display type | TFT LCD |
Serial communication
| Number of serial ports | 2 Port combined 9pin DSUB with dual pin out |
| Serial port 1 | RS 232 (RTS/CTS) |
| Serial port 2 | RS 485 |
| Serial port 3 | RS 232 |
Ethernet communication
| Number of Ethernet ports | 2 |
| Ethernet port 1 | 1x10/100 Base-T (shielded RJ45) |
| Ethernet port 2 | EtherCAT in CODESYS |
Environmental
| Operating temperature | -10 to + 50 °C |
| Storage temperature | -20 to + 70 °C |
| Shock | 10G 11ms half sine |
| Vibration | 0,7G RMS |
| Sealing front | IP65 |
| Sealing back | IP20 |
| Humidity | <85 % non-condensed |
