Busch Oil Filters for Vacuum Pumps

This equipment is supplied and distributed by AVA. Our products are always guaranteed genuine and come with full CO and CQ certification from the manufacturer, so customers can be completely confident in our products and services.

AVA is also committed to supplying customers with the best possible prices and to helping them get access to the products.

1. What is an oil filter?

Busch filters for vacuum pumps are one of the necessary and important parts of a vacuum pump. The Busch filter's job is to separate out dirt, foreign objects and debris, ensuring the vacuum pump works at its best.

   2. Genuine Busch air filters

The filters come in many products and models, so depending on the vacuum pump we choose the right filter to ensure the correct technical specification and proper operation.

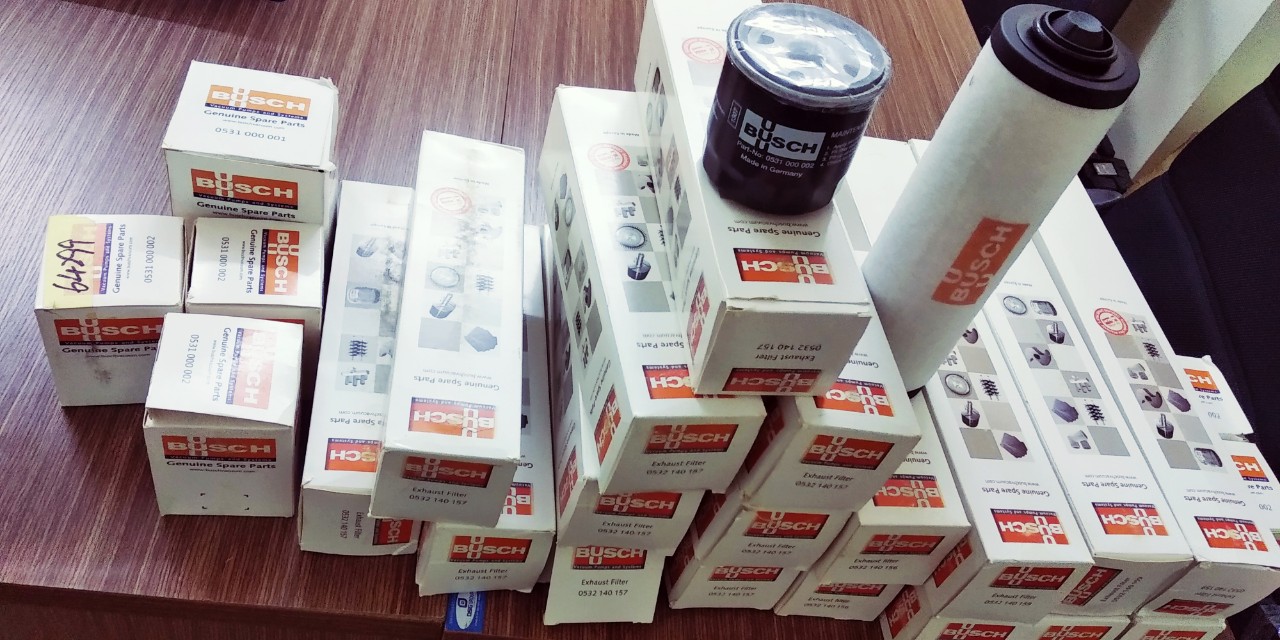

Figure 1: Busch air filter

5. Benefits of the filter

• Optimum energy efficiency: less load on the vacuum pump and lower energy consumption.
• Outstanding performance and optimum service life: low pressure drop throughout the filter's working life.
• High-quality filters reduce oil costs: good filter quality saves money and creates a cleaner working environment.
• Worldwide distribution and support
• Discharge temperature 4 ºC lower: less heat released into the surroundings
• Noise emissions reduced by up to 4 dB: quiet running helps keep the workplace safe.
• Comprehensive testing methods ensure the highest quality standards.
• Suitable for oxygen-rich applications.
• Widely applicable in chemical environments, with an ATEX certified version available.
• Highly conductive, with no risk of static build-up.
• Easy to install
• Fully traceable by batch and individually.

   3. Genuine Busch STF 0100 - 1000 upright filters

The upright filter is placed on the inlet side of the vacuum pump and protects it from damage caused by contaminants during operation, such as liquids or solids.

Different sizes, materials and filter inserts allow it to be matched to each process.

The upright filter is connected to the vacuum pump by a hose or pipe. The vertical design allows space-saving installation.

The removable cover makes it easy to take out the filter inserts for tipping. In addition, the lower part of the upright filter is easily accessible for cleaning through a large side opening.

Figure 2: Busch upright filter

5. How it works.

The Busch STF upright filter combines several separation mechanisms in a multi-stage process. The filter housing is designed as a cyclone at the gas inlet (1). The gas inlet has an offset conical shape that lets the gas or vapour flow along the inside of the vessel. Small particles and liquids are separated at this stage. After passing through the filter insert, the cleaned gas or vapour leaves the upright filter through the gas outlet (2).

A large opening (3) makes it easy to fit additional filters. Collected condensate can be drained through the condensate drain (4). The condensate collection chamber can be cleaned through the cleaning port (5). Other application-specific versions are available, for example with an automatic condensate drain or in stainless steel.

Figure 3: How the Busch upright filter works

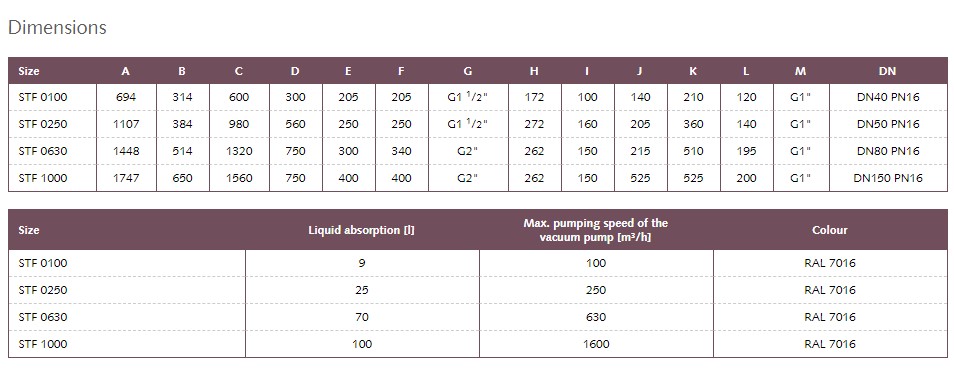

5. Fitting additional filters for different applications

A wide range of applications for separating solids, dust, vapour, condensate and liquids can be covered by fitting different filters.

With the corresponding part numbers for Busch vacuum pump oil separators, oil filters and vacuum pump filters:
