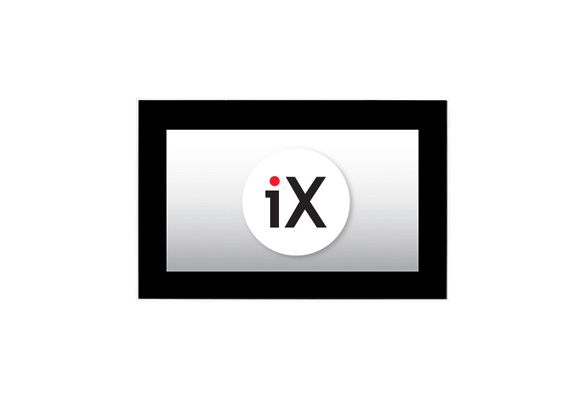

C2 pro 12 iX
C2 pro panel PCs: Màn hình công nghiệp hiệu suất cao
|
|
C2 pro 12 iX12.1" Panel PC with iX runtime- 12.1" 1280 x 800 pixel (16:10) TFT-LCD - Projected capacitive touch screen - Intel® 7th generation Dual Core™ i5-7300U (2 x 2.6-3.5GHz 4 threads) - Main memory 4GB DDR4, application memory 256GB - iX Runtime license with 4000 tags - Windows® 10 IoT Enterprise - CE and UL approvals |
Thông số
General description
| Part number | 100-1178 |
| Life cycle status | Mature |
| Warranty | 2 years |
Certifications
| General | CE, UL, cUL |
Mechanical
| Mechanical size | 316 x 228 x 85mm |
| Mounting option | Panel mount |
| Touch type | Capacitive type |
| Cut-out size | 303 x 216mm |
| Weight | 5.0kg |
| Housing material | Anodized aluminium front, zinc plated steel sheet back |
Power
| Input voltage | +24VDC (18 - 30VDC) |
| Power consumption (max) | 60W max. |
| Input fuse | Internal DC fuse, 5A slow |
System
| CPU | Intel® Core i5-7300U |
| RAM | 4GB DDR4 |
| FLASH | 256GB SSD 2,5" industrial-grade SSD |
Display
| Size diagonal | 12.1" diagonal |
| Resolution | 1280 x 800 pixel |
| Backlight | LED backlight |
| Backlight life time | > 100000h |
| Backlight brightness | 500cd/m² |
| Display type | TFT-LCD |
| Display ports | 1 x HDMI, 1 x DP |
Ethernet communication
| Number of Ethernet ports | 2 |
| Ethernet port 1 | 1GB RJ45 |
| Ethernet port 2 | 1GB RJ45 |
Expansion interface
| USB | 4 x USB3.0 900mA |
Environmental
| Operating temperature | 0°C - +50°C |
| Storage temperature | -20°C - +70°C |
| Shock | 15G 11ms (half sine) |
| Vibration | 1g 10-500Hz 3 axis |
| Sealing front | IP65 |
| Sealing back | IP20 |
| Humidity | 10% - 90 % non condensing |
| Altitude (max) | < 3000m |
