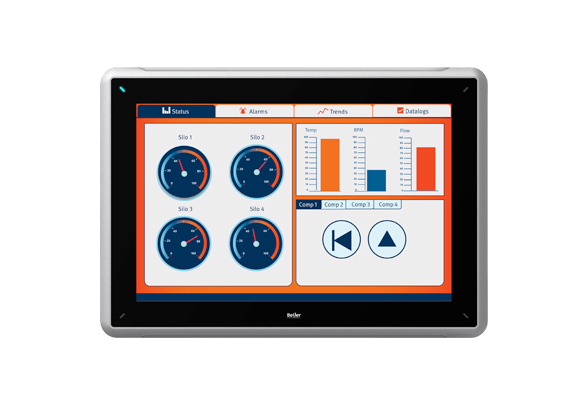

iX T15BR-HP-HB (gloss)
|
|
Màn hình: 15.4" TFT-LCD touch screen - 1280 × 800 (16:10) |
Thông số
General description
| Part number | 640004001 |
| Life cycle status | Limited |
| Warranty | 2 year |
Mechanical
| Mechanical size | 410 x 286 x 83 mm |
| Touch type | Resistive type |
| Weight | 4.5 kg |
| Housing material | Powder coated aluminum |
Power
| Input voltage | +24 VDC (18 - 32 VDC) |
| Power consumption (max) | 28 W |
| Input fuse | Internal DC fuse, 3.15A slow |
Display
| Size diagonal | 15.0 inch |
| Resolution | 1280 X 800 pixels |
| Backlight | LED backlight |
| Backlight life time | 30,000 hrs |
| Backlight brightness | 1000 cd/m2 |
| Backlight dimming | Industrial |
| Display type | TFT LCD |
Serial communication
| Number of serial ports | 2 Port 9pin DSUB |
Ethernet communication
| Number of Ethernet ports | 2 |
| Ethernet port 1 | 1x10/100 Base-T (shielded RJ45) |
| Ethernet port 2 | 1x10/100/1000 Base-T (shielded RJ45) |
Environmental
| Operating temperature | -30 to 70 °C |
| Storage temperature | -40 to + 85 °C |
| Shock | 40G half sine |
| Vibration | 4G RMS |
| Sealing front | IP66 |
| Sealing back | IP20 |
| Humidity | <85 % non-condensed |
