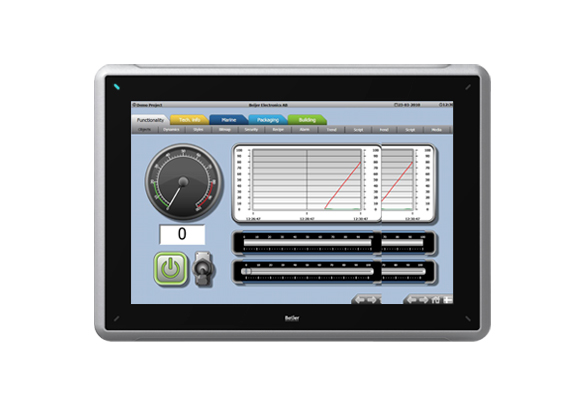

iX T15C - C22
|
|
Màn hình cảm ứng: TFT-LCD 15,4" - 1280 × 800 (16:10), 16 triệu. Màu sắc, đèn nền LED Intel® Celeron® B810E (2× 1,6 GHz) Bộ nhớ chính: 2 GB DDR3 (có hỗ trợ ECC) Bộ nhớ ứng dụng: 120GB 2.5“ SSD Nhiệt độ hoạt động: 0 đến +50 °C Chứng nhận CE và UL508 |
Mô tả
General description
| Part number | 100-0585 |
| Life cycle status | EOL |
| Warranty | 1 year |
Mechanical
| Mechanical size | 410 x 286 x 83 mm |
| Touch type | Resistive type |
| Weight | 5.4 kg |
| Housing material | Powder coated aluminum |
Power
| Input voltage | +24 VDC (18 - 32 VDC) |
| Power consumption (max) | 114 W |
| Input fuse | Internal DC fuse, 10A slow |
Display
| Size diagonal | 15.4 inch |
| Resolution | 1280 X 800 pixels |
| Backlight | LED backlight |
| Backlight life time | 50,000 hrs |
| Backlight brightness | 450 cd/m2 |
| Backlight dimming | Industrial |
| Display type | TFT LCD |
Serial communication
| Number of serial ports | 2 Port combined 9pin DSUB with dual pin out |
| Serial port 1 | RS 232 (RTS/CTS) |
| Serial port 2 | RS 485 |
| Serial port 3 | RS 232 |
| Serial port 4 | RS 485 |
Ethernet communication
| Number of Ethernet ports | 2 |
| Ethernet port 1 | 1x10/100/1000 Base-T (shielded RJ45) |
| Ethernet port 2 | 1x10/100/1000 Base-T (shielded RJ45) |
Environmental
| Operating temperature | 0 to + 50 °C |
| Storage temperature | -20 to + 70 °C |
| Shock | 10G 11ms half sine |
| Vibration | 0,7G RMS |
| Sealing front | IP65 |
| Sealing back | IP20 |
| Humidity | <85 % non-condensed |
