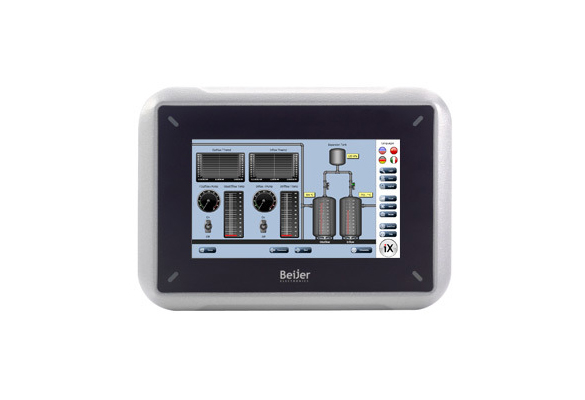

Màn hình cảm ứng TFT-LCD: 4.3" - 480 × 272 (16:9) Bộ nhớ ứng dụng: 80 MB Nhiệt độ hoạt động: -10 đến +60 °C Chứng nhận CE và UL508 |
Mô tả chung
Part number | 630000102 |
Life cycle status | Discontinued |
Warranty | 1 year |
Mechanical
Mechanical size | 145 x 103 x 52.2 mm |
Touch type | Resistive type |
Weight | 0.5 kg |
Housing material | Powder coated aluminum |
Power
Input voltage | +24 VDC (18 - 32 VDC) |
Power consumption (max) | 3.6 W |
Input fuse | Internal DC fuse, 2.0 AT, 5 x 20mm |
Display
Size diagonal | 4.3 inch |
Resolution | 480 x 272 pixels |
Backlight | LED backlight |
Backlight life time | 50,000 hrs |
Backlight brightness | 350 cd/m2 |
Backlight dimming | Industrial |
Display type | TFT LCD |
Serial communication
Number of serial ports | 2 Port combined 9pin DSUB with dual pin out |
Serial port 1 | RS 232 (RTS/CTS) |
Serial port 2 | RS422/485 |
Serial port 3 | RS 232 |
Serial port 4 | RS422 (RTS)/RS485 |
Ethernet communication
Number of Ethernet ports | 1 |
Ethernet port 1 | 1x10/100 Base-T (shielded RJ45) |
Environmental
Operating temperature | -10 to + 60 °C |
Storage temperature | -20 to + 70 °C |
Shock | 10G 11ms half sine |
Vibration | 0,7G RMS |
Sealing front | IP65 |
Sealing back | IP20 |
Humidity | <85 % non-condensed |
Altitude (max) | 0 |
