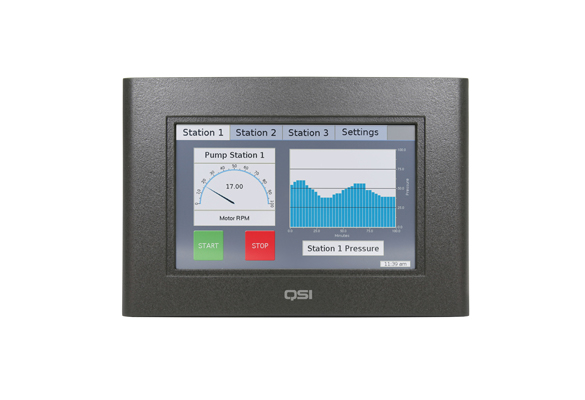

QTERM-G72: Panel-mount HMI
|
|
The QTERM-G72: Màn hìn cảm ứng 7” (177 mm).
- 800 x 480 pixel WVGA, 7” (177 mm) diagonal, LED lighted, TFT color LCD touch screen display - Panel-mount - -20 to 70 °C operating temperature - Touch screen - NEMA-4 sealing, IP66 - 10 to 32 VDC - Qlarity-based object-based programming language, Qlarity Foundry Windows design environment |
Thông số
General description
| Part number | QTREM-G72/xxxx |
| Life cycle status | Discontinued |
| Warranty | 1 year |
Certifications
| General | FCC, CE |
Mechanical
| Mechanical size | 223 x 153 x 66 mm |
| Touch type | Resistive |
| Cut-out size | 199 x 145 mm |
| Weight | 1.0 kg |
| Housing material | Polymer |
Power
| Input voltage | 10 to 32 VDC |
| Power consumption (max) | 8 Watts @ 24 VDC |
System
| CPU | Atmel ARM-9 196 MHz |
| RAM | 32 MB |
| FLASH | 4 MB |
Software
| Operating system | Windows CE |
Display
| Size diagonal | 7" (177 mm) |
| Resolution | 800 x 480 |
| Backlight | LED lighted, TFT color LCD |
| Backlight dimming | Software-controllable |
Ethernet communication
| Number of Ethernet ports | 1 |
| Ethernet port 1 | 1x10/100 Base-T (shielded RJ45) |
Environmental
| Operating temperature | -20 to 70 °C |
| Storage temperature | -30 to 85 °C |
| Vibration | 4 g 10-1500 Hz |
| Sealing front | NEMA-4, IP66 |
| Humidity | 5 to 95%, non-condensing |
