Beijer Electronics - HMI Panels
GENUINE PRODUCT

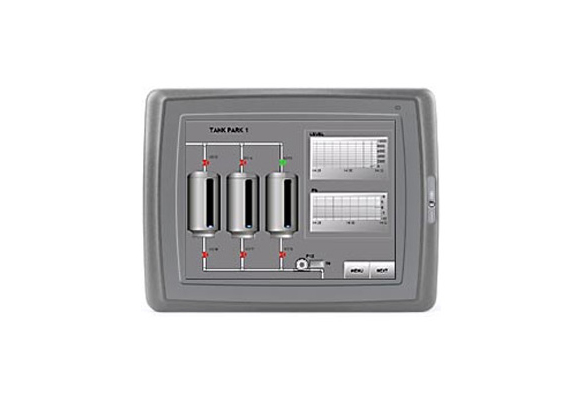

EXTER T100
SKU: AVA-BCEDDD99
Category: EXTER operator panels - End Of Life
PRICE:
REQUEST A QUOTE
Manufacturer warranty
Overview
EXTER T100 - AVA Air Vacuum Automation.
TECHNICAL SUPPORT & QUOTE
Talk to the AVA engineering team for the best offer.
TECHNICAL DETAILS & SPECIFICATIONS
EXTER T100
|
|
10'' graphic touch HMI800 x 600 pixels TFT display 10" TFT-LCD touch screen Project storage 12 MB Operating temperature 0 to +50 °C Ethernet and serial Touch display |
Facts
General description
| Part number | 602220135 |
| Life cycle status | Limited |
| Warranty | 1 year |
Mechanical
| Mechanical size | 302 x 228 x 64 mm |
| Number of touches | 1 million finger touch operations |
| Touch type | Resistive type |
| Cut-out size | 265 x 206 mm |
| Weight | 2.1 kg |
| Housing material | Powder-coated aluminium, grey |
Power
| Input voltage | 20 - 30 VDC |
| Power consumption (max) | 12 W |
| Input fuse | Internal DC fuse, 3.15 AT |
Display
| Size diagonal | 10.4 inch |
| Resolution | 800 x 600 pixels |
| Backlight | CCFL with dimming |
| Backlight life time | 50,000 hrs |
| Backlight brightness | 350 cd/m2 |
| Display type | TFT CCFL |
Serial communication
| Number of serial ports | 1 Port 9pin DSUB/1 Port 25 pin DSUB |
| Serial port 1 | RS 232 (RTS/CTS) |
| Serial port 2 | RS422 (RTS)/RS485 |
Ethernet communication
| Number of Ethernet ports | 1 |
| Ethernet port 1 | 1x10/100 Base-T (shielded RJ45) |
