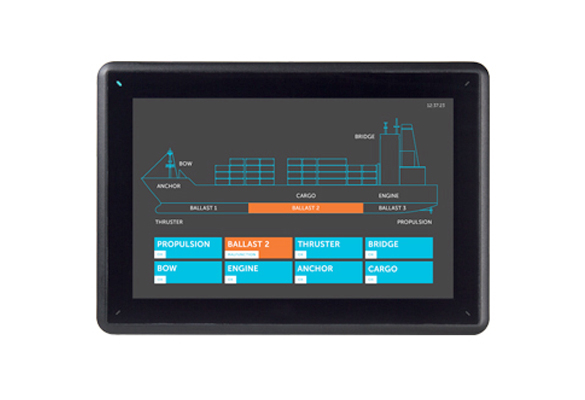

iX T15BM-HB - màn hình điều khiển dùng cho các ứng dụng hàng hải
|
Màn hình cảm ứng: 15.4" TFT-LCD touch screen - 1280 × 800 (16:10) |
Thông số
General description
Part number | 640003501 |
Life cycle status | Discontinued |
Warranty | 1 year |
Mechanical
Mechanical size | 410 x 286 x 83 mm |
Touch type | Resistive type |
Weight | 4.5 kg |
Housing material | Powder coated aluminum |
Power
Input voltage | +24 VDC (18 - 32 VDC) |
Power consumption (max) | 28 W |
Input fuse | Internal DC fuse, 3.15A slow |
Display
Size diagonal | 15.0 inch |
Resolution | 1280 X 800 pixels |
Backlight | LED backlight |
Backlight life time | 30,000 hrs |
Backlight brightness | 1000 cd/m2 |
Backlight dimming | Marine Optimized for bridge |
Display type | TFT LCD |

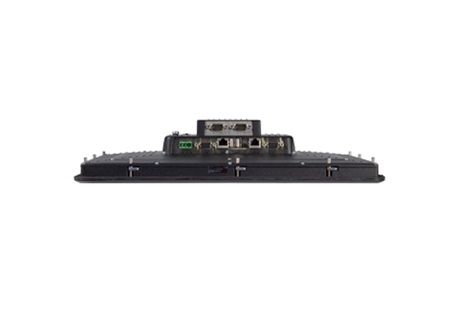

Serial communication
Number of serial ports | 2 Port 9pin DSUB |
Ethernet communication
Number of Ethernet ports | 2 |
Ethernet port 1 | 1x10/100 Base-T (shielded RJ45) |
Ethernet port 2 | 1x10/100/1000 Base-T (shielded RJ45) |
Environmental
Operating temperature | -15 to 55 °C |
Storage temperature | -20 to + 70 °C |
Shock | 10G 11ms half sine |
Vibration | 0,7G RMS |
Sealing front | IP65 |
Sealing back | IP20 |
Humidity | <85 % non-condensed |
